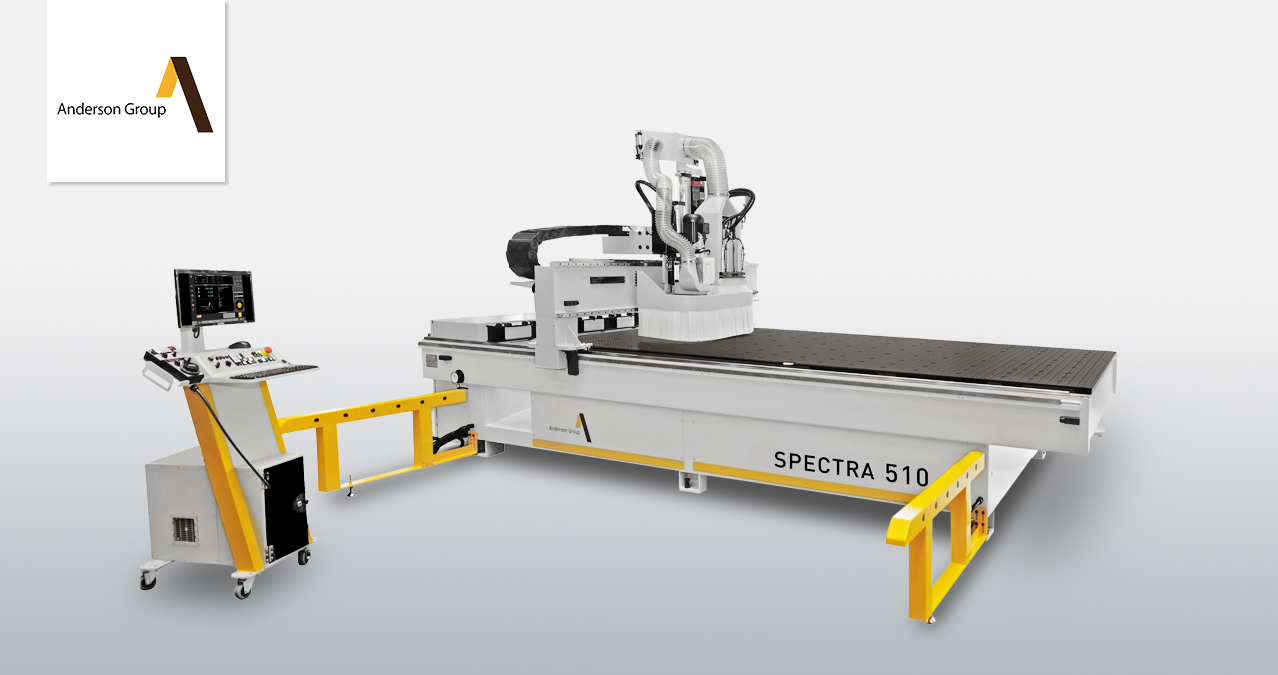

ANDERSON Spectra Series CNC Router

A robust light industrial CNC router with best-in-class performance. With total focus on high performance, reliability, and innovation in one turnkey package, the choice is simple: turn to the Anderson Spectra Series CNC Router as your next CNC Router. Never has so much machine value been available in an entry-level industrial CNC router. When designing the Spectra Series CNC Router, Anderson had the goal of developing a machine at an economical price point while still maintaining the quality, performance, and attention to detail to which all of their products have become known.

Why Anderson Spectra Series CNC Router?

High performance, reliability, and innovation. All combined in one turnkey package.
The combination of a rigid machine design, quality components, and incredible value.
Nesting at an affordable price with a 10HP router spindle and separate multi-spindle boring block.
The quality, performance and attention to detail to which all of the Omnitech products have become known.a

Key Advantages

The most robust machine in its class, allowing for superior feed speeds and cut quality.
Fully versatile CNC machine with electro-spindle, tool changer, and drilling head, which are optimum for CNC nesting applications.
Superior vacuum holds down using its highly efficient vacuum plenum design.
Available in two versions with either 4’x8’ or 5’x10’ table design.

Key Features

Powerful 10HP HSK electro spindle: 1000~24000 RPM.

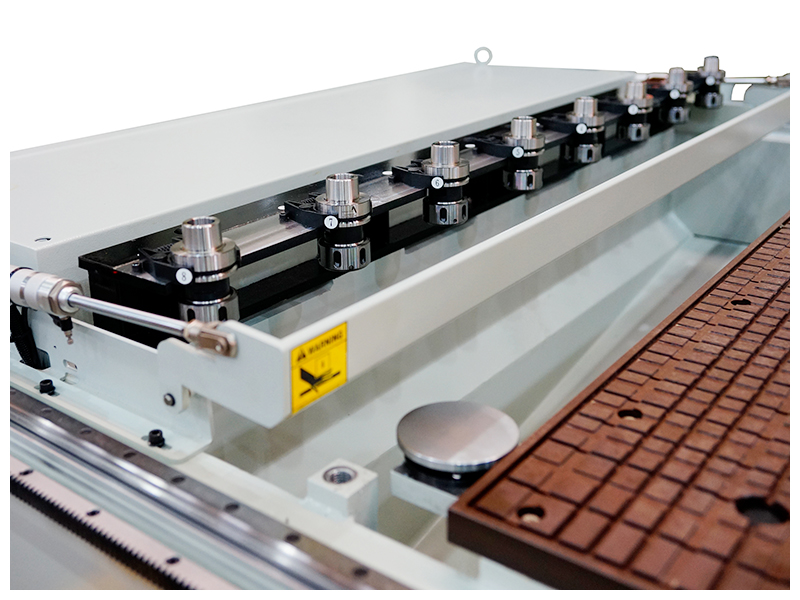

6 or 8-position static tool changer.
Multi-spindle drill head ideal with (6) independently operated spindles ideal for nesting or drilling operations.

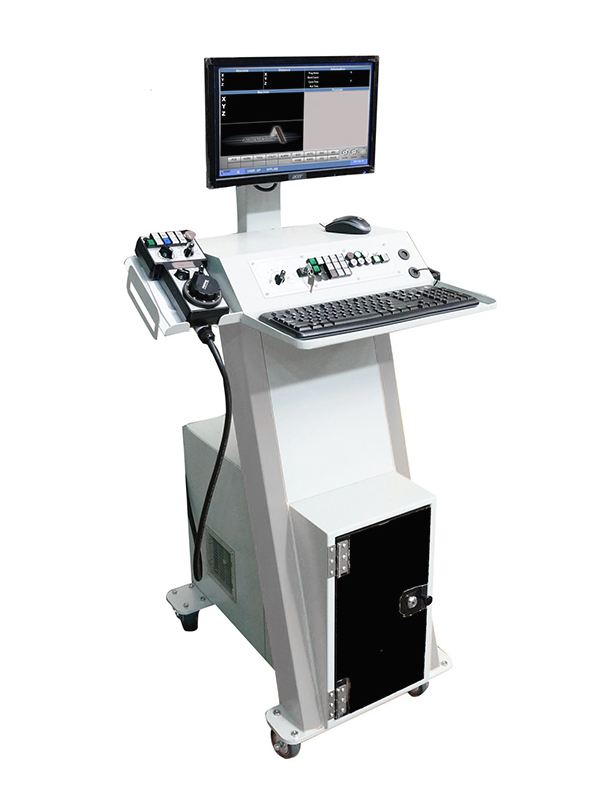

Syntec industrial control with Windows PC interface.

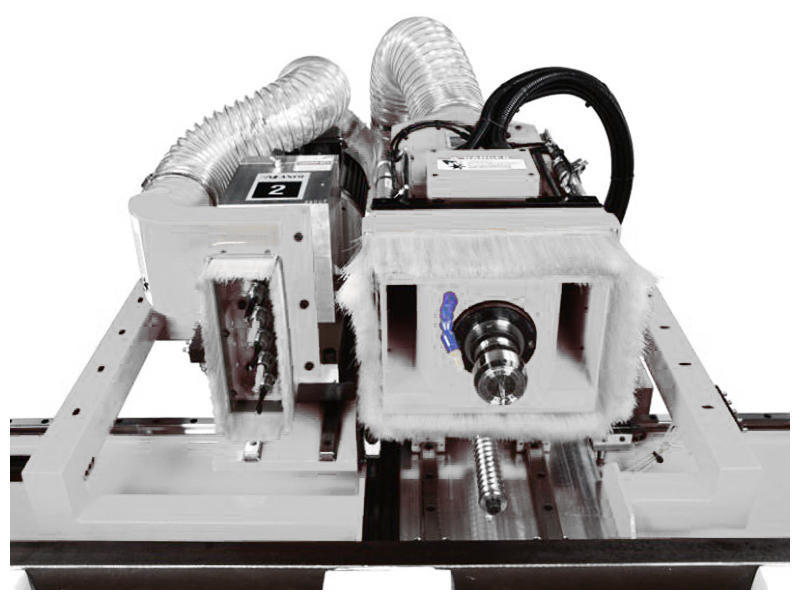

Cast iron mounting plate for the routing & drilling units for superior vibration dampening allowing for superior feed speeds and cut quality.
Hardened and precision ground ball screws with anti-backlash ball nuts are provided for movements of the Z-axis.
The X and Y-axis movement is via a precision rack and pinion system.
Dual drive system on Y-axis for superior cutting speed.
9 HP BECKER vacuum pump with 250 cbm/hour capacity. This pump configuration will allow a wide range of flexibility in holding large and small workpieces for safe parts processing.
The vacuum table is made of a welded torsion-resistant steel construction, on to which an industrial-grade, extra hard phenolic table has been mounted for secure positioning of the workpieces and holding fixtures.
(3) automatic sheet reference pop-up pins integrated in the vacuum table for precise & convenient positioning of worksheets.
Integrated tool touch-off device for automatic tool length measuring, saving time & increasing productivity.
An efficient dust collection manifold is provided for the Router and Drill Heads.
Photocell safety curtain will pause the machine if the operator enters the loading area of the machine.
A safety hood for the spindle working area.
